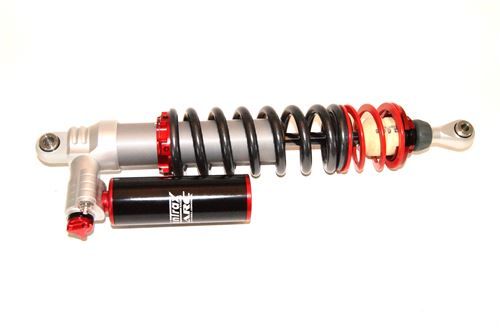

Intrax 4 Way Coilover Suspension Systems for the BMW E36 Models Including M3
£5,295.00
Upgrade your driving experience with the Intrax 4-Way Coilover Suspension System, the ultimate performance solution for the BMW E36, including the iconic BMW M3. Designed for serious enthusiasts and track drivers, these adjustable coilovers for E36 models deliver precise control, exceptional stability, and race-inspired handling.
Unlike standard suspension setups, the Intrax 4-Way Coilover System provides independent adjustment of low-speed compression, high-speed compression, rebound, and ride height. This advanced four-way adjustability allows you to fine-tune your suspension for road comfort, spirited street driving, or competitive motorsport conditions.
Key Benefits of Intrax 4-Way Coilovers:
BMW E36 coilovers with full 4-way adjustability
Ride height adjustable for perfect stance and weight balance
Superior handling and reduced body roll for sharper cornering
Optional performance upgrades: ARC® (Anti Roll Control), EMC® (Electronic Magnetic Control), and Black Titan coating for durability and performance gains
Built using motorsport-grade materials for long-lasting reliability
Whether you’re looking for a BMW M3 suspension upgrade to dominate on the track or simply want a smoother, more controlled ride on the road, the Intrax 4-Way Coilover Suspension delivers. These high-performance coilovers are trusted by professional racers and developed with decades of motorsport expertise, ensuring maximum quality and precision.
Transform your BMW E36 or M3 with Intrax 4-Way Coilovers—where engineering meets performance. Gain the confidence, control, and comfort you need to enjoy every drive to the fullest.
4 Way
The 4-Way shock absorber is Intrax’ top-rated product. The damping can be adjusted separately for the low-speed bump (inward damping), the high-speed bump and the rebound (outward damping) of the shock absorber. You can also adjust the total compression range.
The 4-Way shock absorber is based on the same technology that has helped Schumacher become a World Champion.
The interior is more comprehensive than that of all other Intrax dampers and contains more than 115 precision parts..
The interior is more comprehensive than that of all other Intrax dampers and contains more than 115 precision parts..
– The slow inward damping (also known as ‘low-speed compression’) determines, overall, the front to back and left to right movement of the car (also known as ‘pitch’ and ‘roll’). These movements are the result of acceleration, braking and cornering speed.
– The fast inward damping (also known as ‘high-speed inward compression’) determines, roughly speaking, the compression of the wheels on short bumps, such as curb stones and rills in the road surface.
– The outward damping (also known as ‘rebound’) stabilises the car, damps the unwanted movements and absorbs the unwanted energies.
Large diameters
Where possible, the housing of the 4-Way shock absorber is made of high-quality aluminium (if desired or required, it can also be made of steel).
This guarantees a low weight, maximum strength and optimal cooling.
Whilst designing the 4-Way shock absorber, the largest possible diameter is chosen for an even more accurate control of the damping; usually a 52mm housing with 46mm piston.
Where possible, Macpherson struts are fitted as upside-downs with a 45mm diameter instead of a thin piston rod that is mounted to the chassis.
PROS
The different product options:
Black Titan
Black Titan is a development originating from military aviation. They aimed to develop a metal treatment that would make the surfaces of jet engine parts more resistant to the various punishing circumstances to which those engines are exposed (extreme cold and heat, extreme airflow speeds combined with rain, snow, sand et cetera). The result was what we now call Black Titan: a coating that is extremely hard, has very low friction and protects against corrosion. After applying this coating on critical components of the jet turbine engines, the maintenance intervals could be extended with up to 100%, or twice as long.
We at Intrax saw the advantages of this material and started applying this wear-resistant coating to the guide and piston rods of our shock absorbers. Black Titan makes them very resistant to corrosion and damage from road dirt, and friction is greatly reduced, which not only improves the functioning and responsiveness of the dampers, but also increases durability.
Camber plates
Compared to the standard rubber top mounts that allow a lot of movement, a greatly increased control over the suspension and
steering is created. The camber plates make the camber (in some cases also the caster) infinitely adjustable. The camber plates and hard top mounts that we have in stock
can be viewed here. If the desired camber plate and/or top mount is not included, please contact us, we often have another solution (welding plates) or make a custom plate for you.
IMPORTANT NOTE: We do not recommend camber plates and/or hard top mounts for street use. Due to the hard connection that is made between the suspension and the chassis, extra noises can be heard.
ARC (Anti Roll Control)
The ideal system for both normal road use and competition use. With the ARC® system, it’s possible to use that slightly softer spring that makes the car more compliant over bumps or curbstones at racetracks, that gives more grip and traction, but which is actually too soft because it generates too much unwanted roll and/or pitch, and which may even lead to the suspension bottoming out over some bumps, potholes or curbstones.
Thanks to the fact that ARC® is capable of differentiating between normal bumps and cornering movement, and even between different kinds of bumps, it is possible to choose that softer spring or a softer anti-rollbar. At large bumps or roll or pitch movements, the damping increases immediately, which prevents bottoming and reduces body movement. ARC® does all this without using any complicated and failure-prone electronics. ARC® is a system that interprets the shock travel speed in an intelligent mechanical-hydraulic way and can differentiate its response to different suspension inputs.
EMC (Electronic Magnetic Control)
Intrax developed a unique system with which from the inside of the car the shocks can be adjusted. With our system you can adjust the front shocks separately from the rear shocks. The EMC is developed with competition in mind so it can cope with large forces and when for some reason the electronics have a failure the shocks will go to the safe middle setting (so no max hard or max soft). For more information don’t hesitate to call or mail us.
EHC (Electronic Height Control)
With this lift system the pre-load (height of the car) on the spring can be changed from inside the car. Intrax developed a compact hydraulic pump with which the preload adjusters can be changed in length which will change the height of the car. Offered for the front but can also be fitted on front and rear shocks.
By adding EHC as an extra option, the height can be adjusted from inside the car. This can have the advantage that the bumper no longer touches the ground at steep angles in a garage, for example, that higher speed bumps can be taken without any problems, that entry becomes easier, that the normal driving position can be lower and much more.
| SKU | INT_4Way_E36M3 |
|---|---|
| Motorsport Brand | Intrax |
| manufacturer partnumber | Int4WayE36M3 |
| Car make | BMW |
| Model | E36, E36 M3, E36 M3 EVO |
